Easy Access Station Upgrade Pendle Hill

1
/
5

Project data

Location: Sydney, Australia

The client John Holland has been awarded a contract worth more than $50m by Transport for New South Wales (TfNSW) to upgrade train stations at Pendle Hill, Wentworthville, Croydon and Blacktown in Sydney.



Requirements

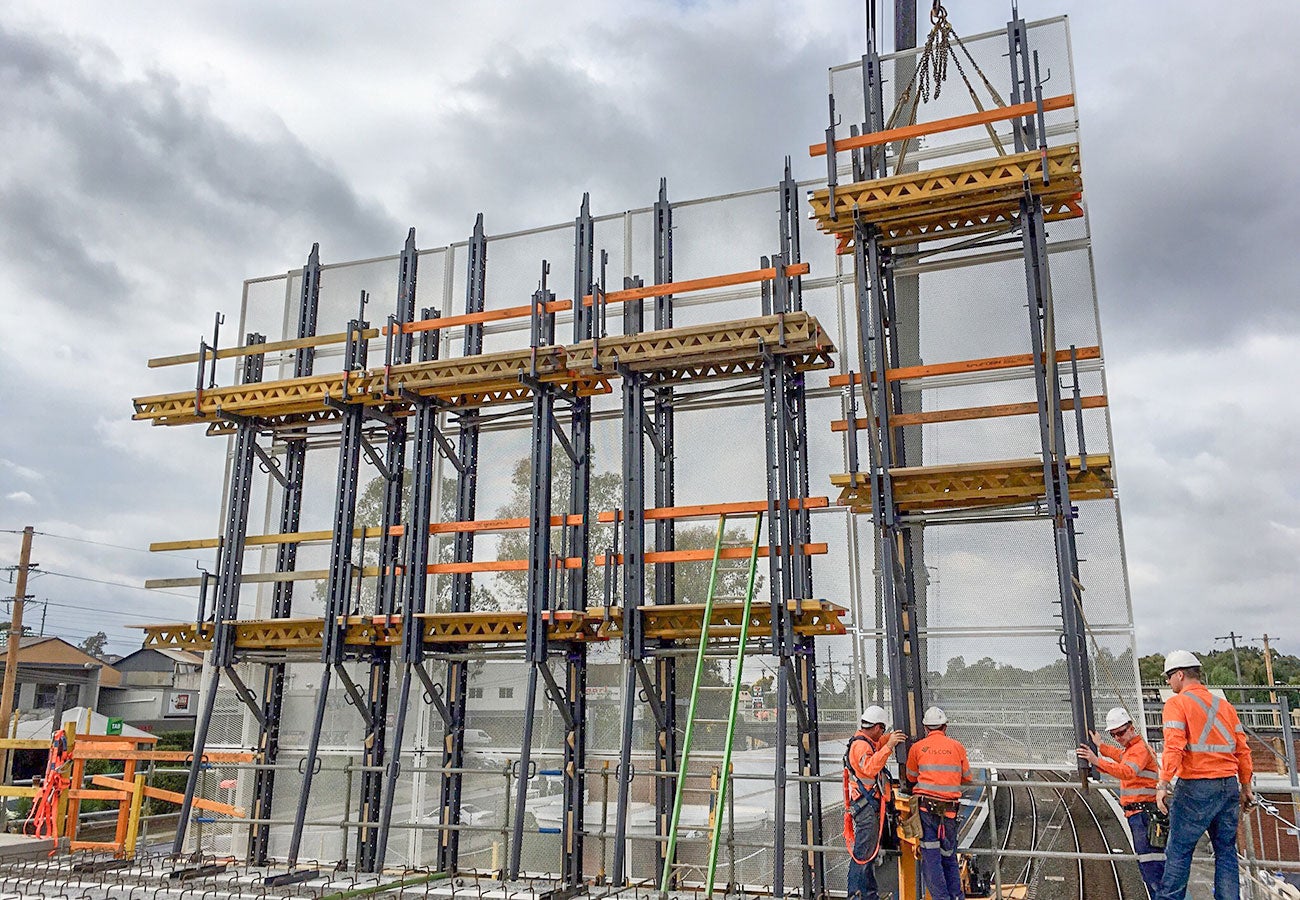

  • Pre-assembly of screens, platforms & trusses
  • Adequate clearance from live railway catenary lines.


Customer

John Holland Group

Benefit to customer

  • All material pre-assembled in PERI yard and delivered to site for installation

PERI solution

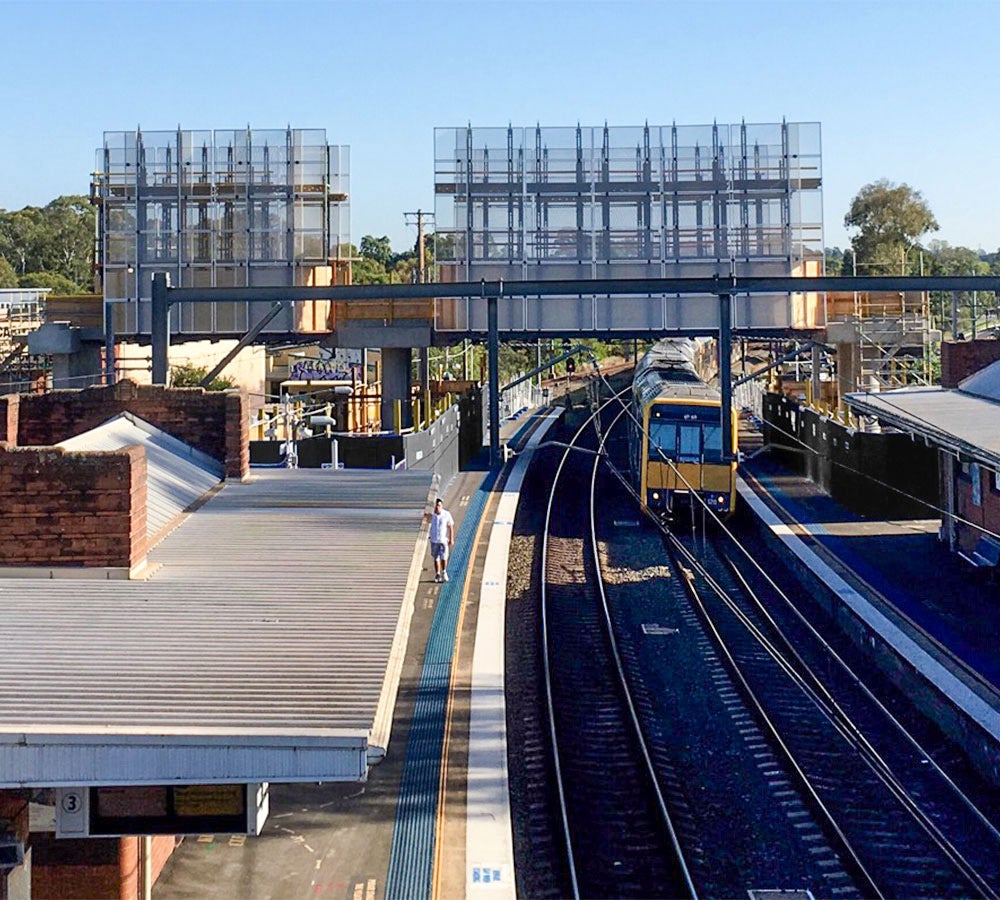

PERI provided a safety screen solution at Pendle Hill to allow for a new platform structure to be built over a live metro railway line.
Three sections of safety screens are to be installed over three separate shutdown weekends.
1st section 13m long and 2nd & 3rd sections 11m long have already been supplied by PERI.

Plywood was provided and attached to the screens for about 2.5m in height.
Plywood for platforms was provided as well.

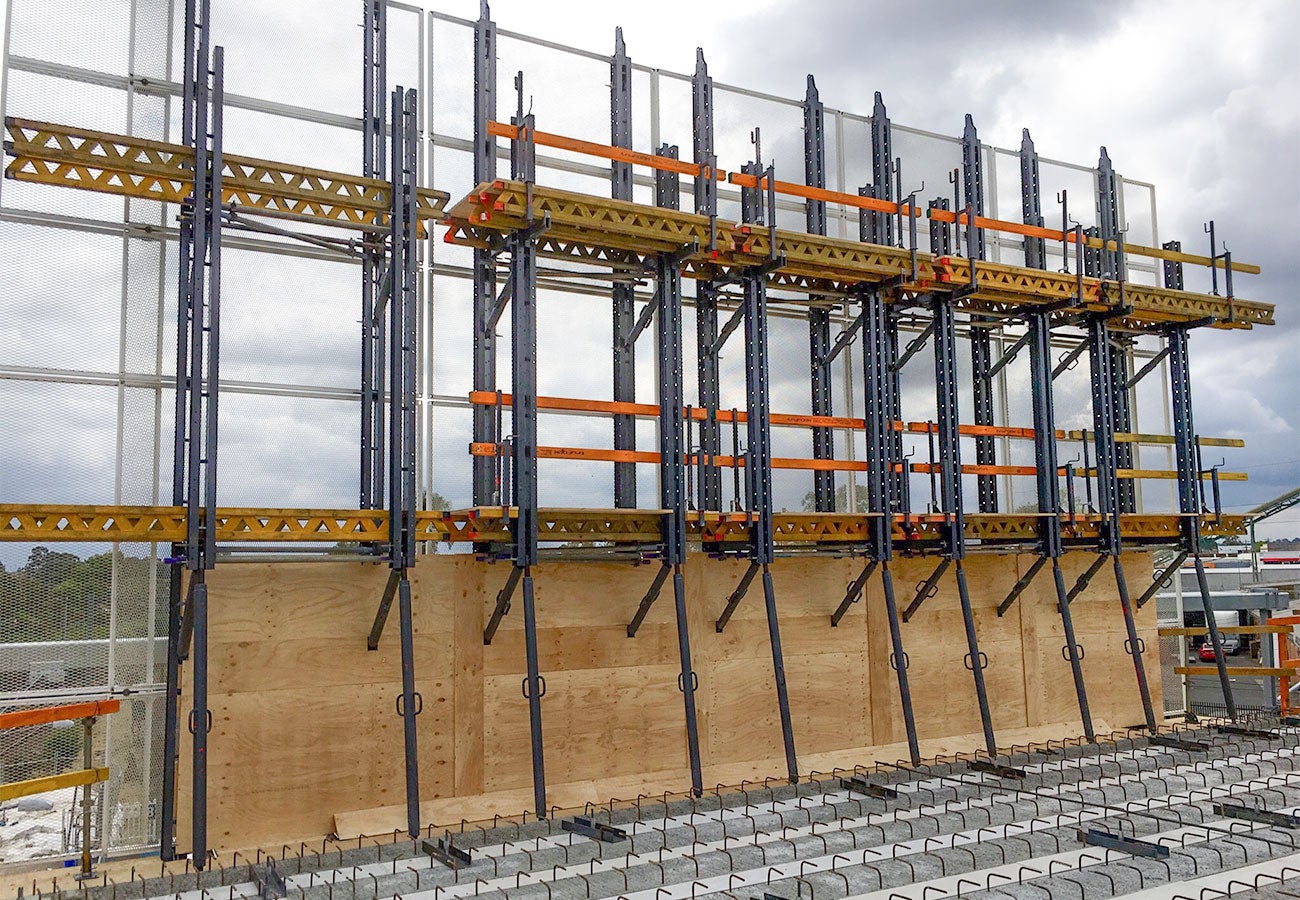

All safety screens were supported from underneath the pre-cast planks.

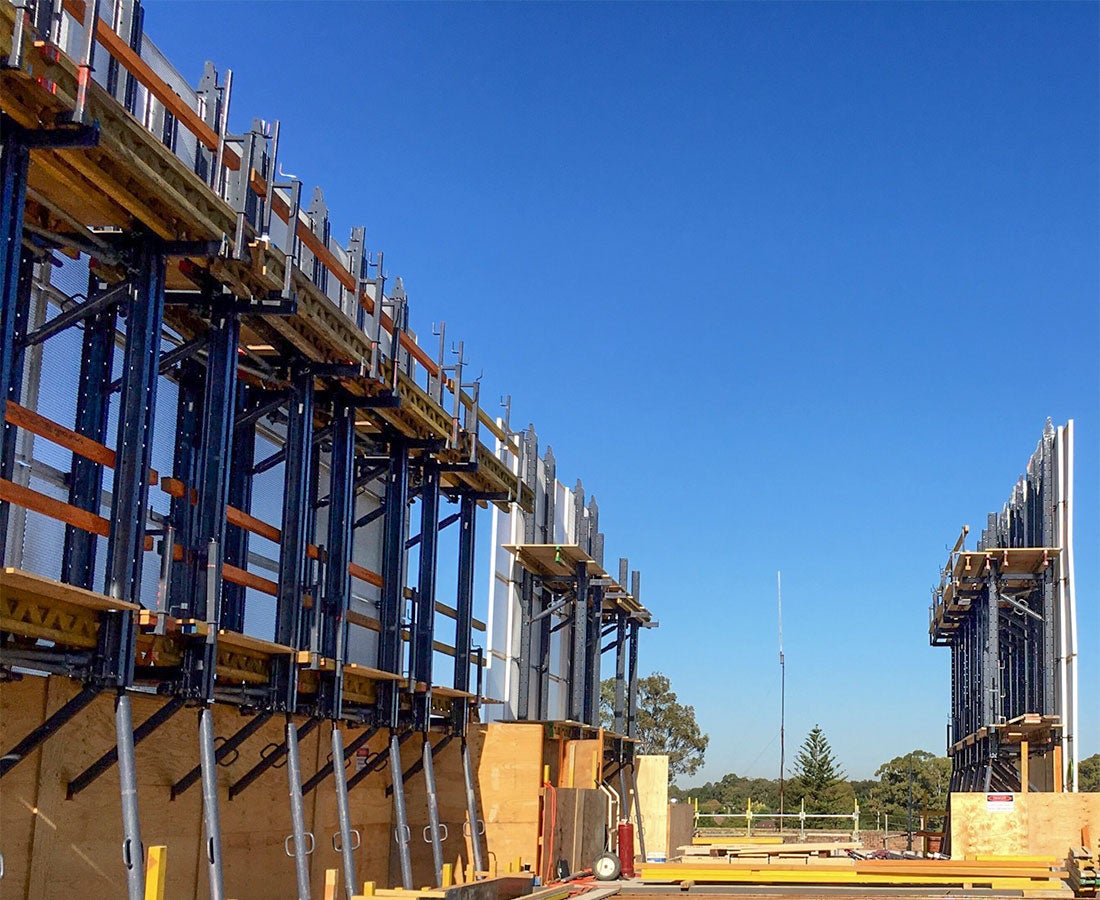

Three levels of working platforms each 1.5m wide were allowed for.

PERI systems in use
